Second Hand SDLG E6500F Heavy Duty Digger Large 50 Ton Excavator
SDLG E6500F Heavy Duty Digger is a heavy-duty large-scale mine excavator, adopting European technology. Its engine, pump valve and other core components come from world-famous brands, with excellent performance and reliable quality.
* The SDLG E6500F Heavy Duty Digger is equipped with a special low-speed and high torque Tier 3 engine, which has strong power, large digging force and low fuel consumption. It is widely used in large-scale mining, large-scale infrastructure projects and other conditions.
* EECU can monitor the whole process, control the injection time and quantity more accurately, and reduce the fuel consumption.
* The hydraulic system has the functions of double pump confluence, flow regeneration, slewing priority, boom priority etc., with shorter cycle and high operation efficiency.
* It is equipped with heavy-duty four-wheel belt as standard, and full chain rail guard plate to protect the supporting wheel and chain rail from derailment during steering.
* The standard oil bath air filter can filter more than 95% of particles and dust, and basically eliminate the occurrence of
engine early wear and other faults. It is more suitable for the bad dust condition of mine.
SDLG E6500F Heavy Duty Digger Parameters
| Overall width of upper assembly | 2990mm |
| Overall width | 3465mm |
| Overall height | 3770mm |
| Tail swing radius | 3800mm |
| Overall height of engine hood | 2750mm |
| Ground clearance of counterweight | 1275mm |
| Wheelbase | 4475mm |
| Crawler length | 5475mm |
| Crawler gauge | 2740mm |
| Crawler pad width | 600mm |
| Min. ground clearance | 550mm |
| Overall length | 11630mm |
| Overall height of boom | 3770mm |
| Overall parameters |
| Bucket capacity | 2.8m³ |
| Overall operating weight | 49500kg |
| Max. excavation force | 276.5KN |
| Slew speed | 8.5r/min |
| Traveling speed (low/high) | 2.9/4.8km/h |
| Average ground pressure | 89.6kPa |
| Max. digging radius | 10930mm |
| Max. digging depth | 6580mm |
| Max. digging height | 10600mm |
| Max. dumping height | 6970mm |
| Min. front slewing radius | 4780mm |
| Engine |
| Model | SD130A |
| Type | Four-stroke,inter-cooled, supercharged |
| Rated Power@Revolution Speed | 245kW |
| Displacement | 12800mL |
| Cylinder bore × stroke | 131*158mm |
| Emission standard | GB20891-2014 China Phase III |
| Traveling/swing system |
| Qty. of carrier rollers (single side) | 2 |
| Qty. of track rollers (single side) | 9 |
| Traveling brake type | Wet disc brake |
| Swing mode | Fixed swashplate, piston motor |
| Swing brake type | Wet disc brake |
| Hydraulic system |
| Hydraulic control type | Pilot proportional control valve |
| Hydraulic system type | Dual pump control system |
| Max. flow | 2*345+30L/min |
| Operating pressure | 320kgf/cm2 |
| Fill capacity |
| Fuel | 685L |
| Engine oil | 45L |
| Hydraulic oil | 525L |

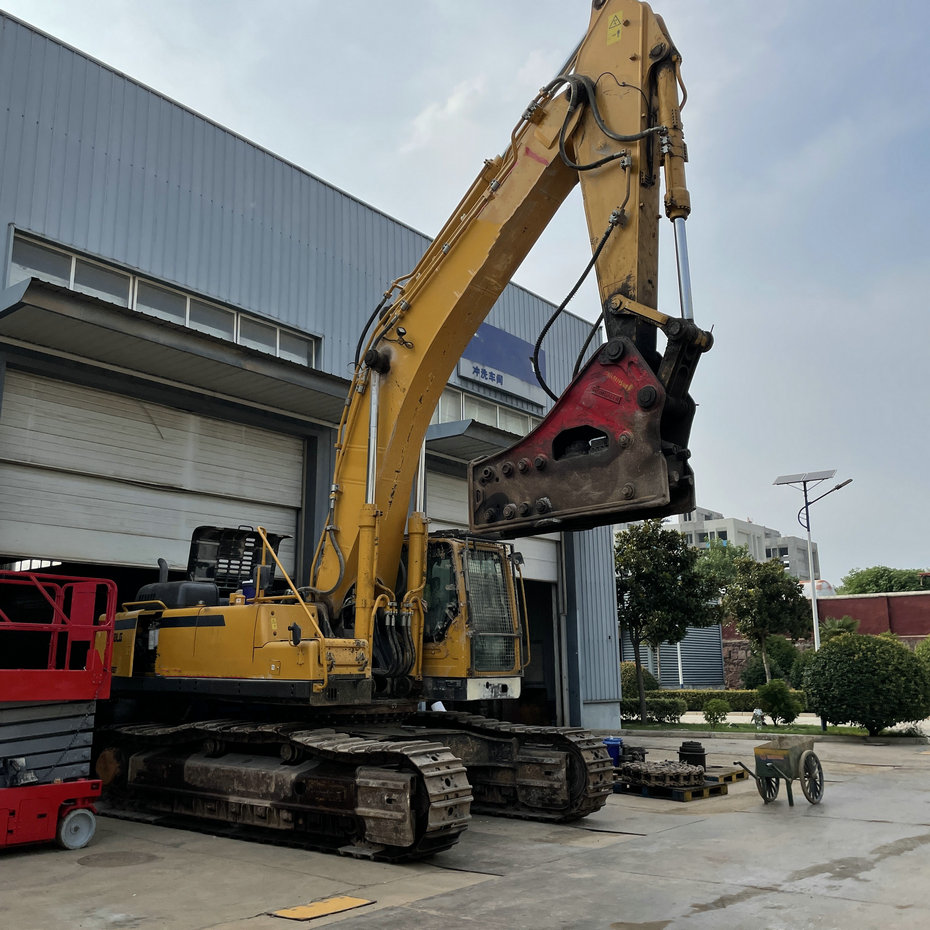

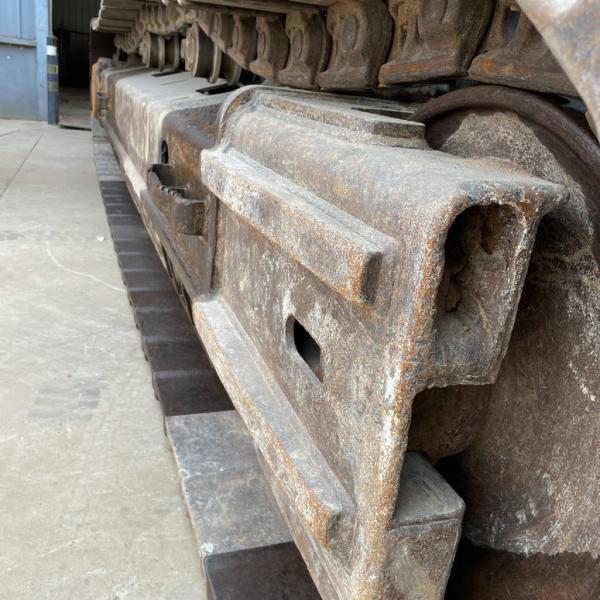

SDLG E6500F Heavy Duty Digger Pictures
|
|
Second Hand SDLG E6500F Heavy Duty Digger Large 50 Ton Excavator Images
|
